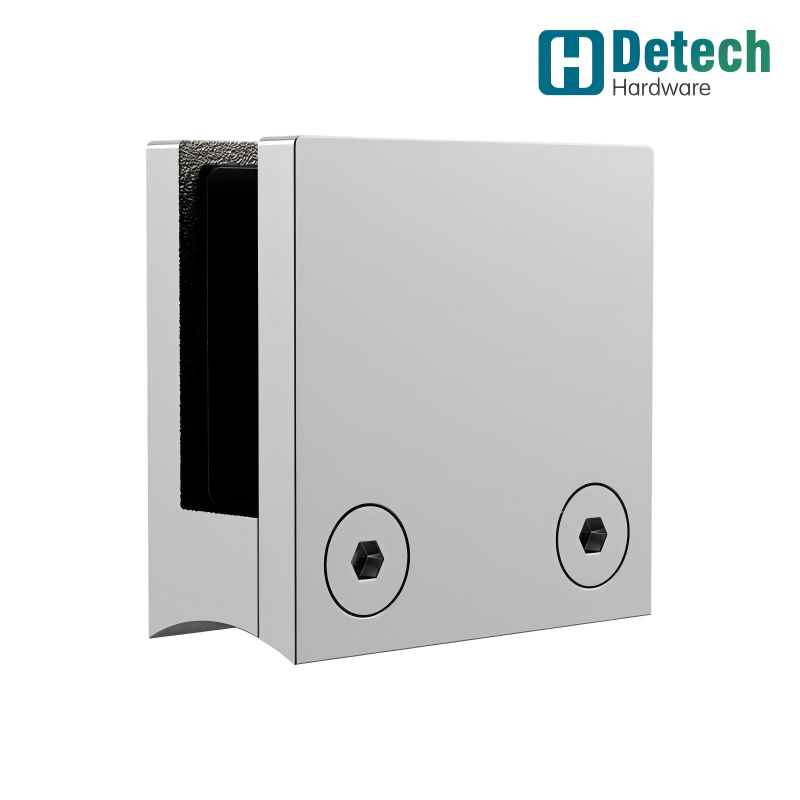

No Hole Square Clamp with Curved Bottom

Short Description:

Part No. DH9016-H

Glass Thickness: 8-12mm
Weight: 0.27Kg
Outline Dimension: 55mm*25mm*55mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

The Solid Square Glass Clamp provides a secure, hole-free mounting solution for glass panels in applications such as display cabinets, bathroom partitions, fixed brackets, and stair railings. Crafted from stainless steel with a curved bottom, it ensures a reliable grip while preserving a sleek, modern appearance.

The square shape of the clamp delivers a distinctive geometric aesthetic, ideal for contemporary designs. Its curved bottom increases the contact surface with the glass, enhancing grip stability and clamping force without the need for drilling.

Suitable for 8–12mm glass, this clamp is available in multiple sizes and finishes to accommodate different thicknesses and style preferences. It offers a durable, visually appealing solution that blends security with clean architectural lines.

Glass Clamp Specifications

Product Name	No Hole Square Clamp with Curved Bottom
Outline Dimension	55mm25mm55mm
Glass Thickness	8-12mm
Weight	0.27Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
